- Remove all stock crap
- Take new Tokiko strut and put the big metal washer on it.
- Put the rubber O ring on the strut
- Use some expander pliers and expand the split pipe over the strut and
slide it down around the O ring

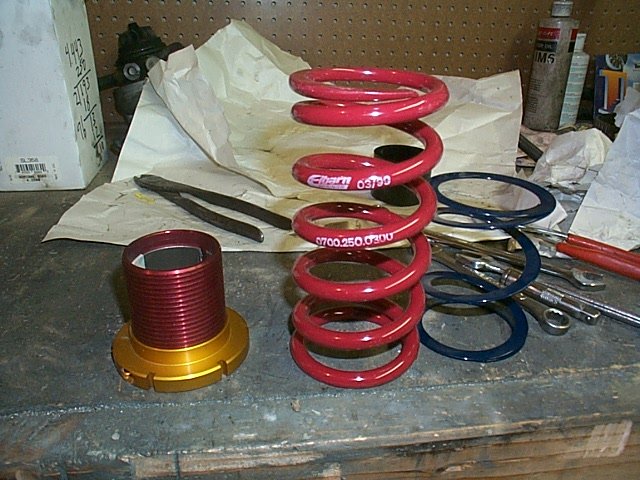

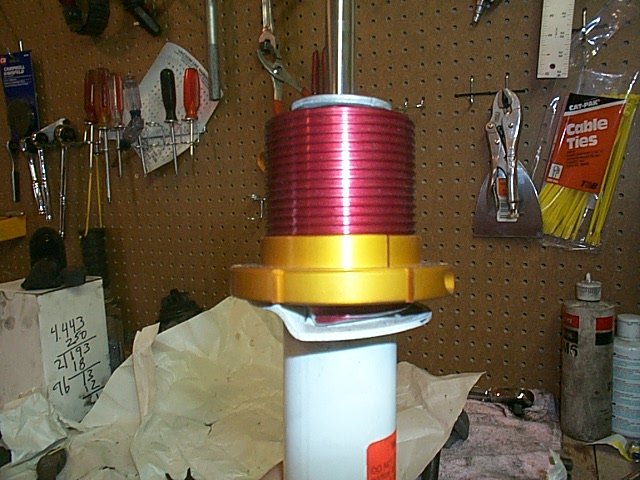

- Take the threaded collar and put the collar where you want it depending on
how much you want your car lowered and tighten the allen bolt down

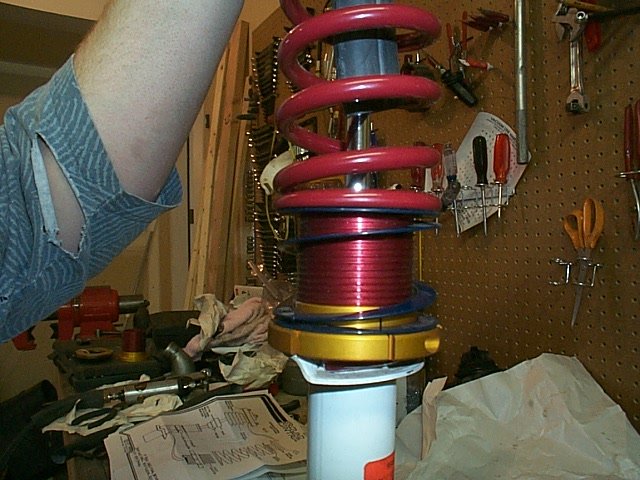

- Drop the spring over the strut
- Take the stock dust shield and remove the plastic accordion piece from the
metal cup it is attached to.
- Take the metal cup and cut off the bottom half inch (the part with the lip
needs removed)
- Cut your bump stop as you see fit

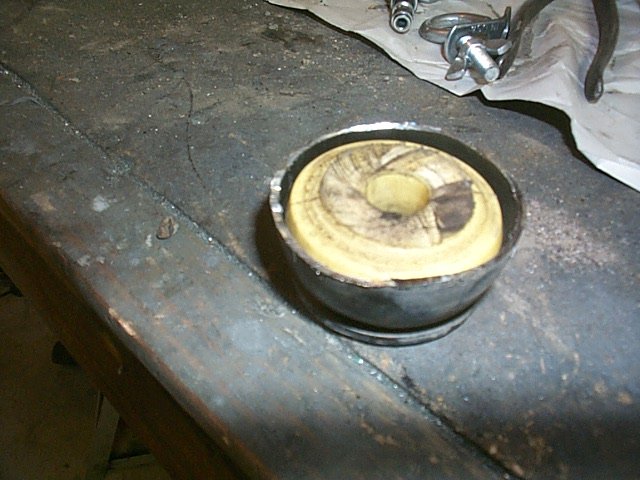

- Put the cut bump stop inside the metal cup.
- Take a piece of rubber bike inner tube and stretch it over the metal cup
and then use a wire tie to secure it.

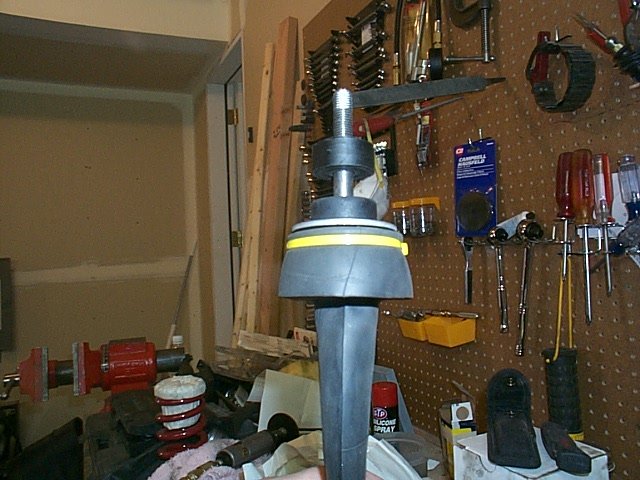

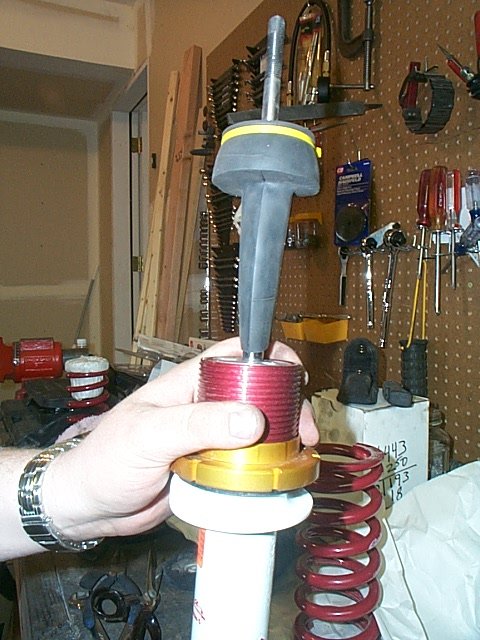

- Slip the modified dust shield over the strut and down through the spring
as the stock one does
- Put the washer over the metal cup
- Now, take two of the spacers and place them on the strut

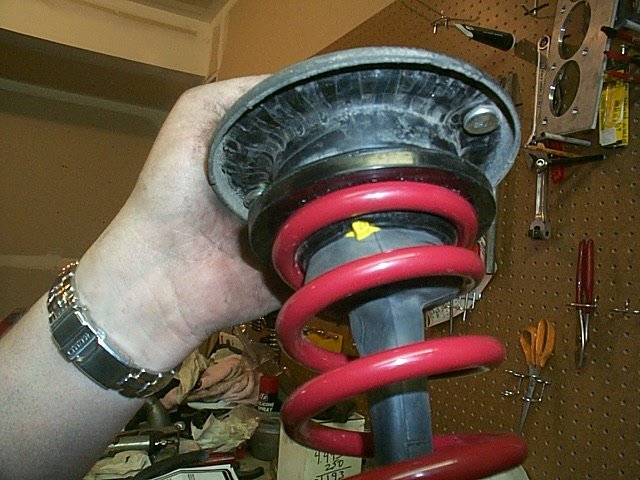

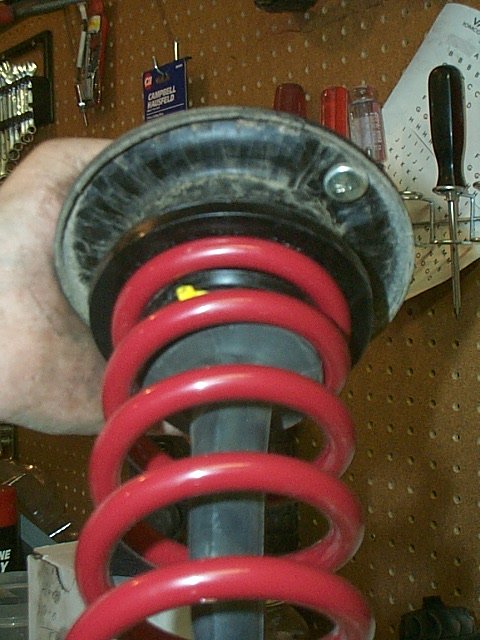

- Put the silicon spring seat on the spring
- Put the brass colored washer on

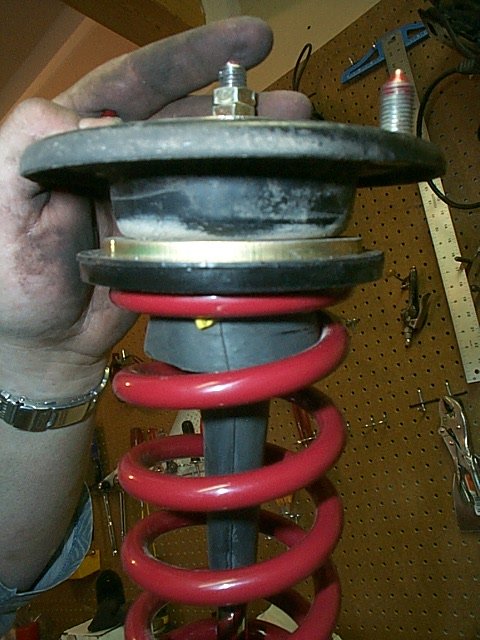

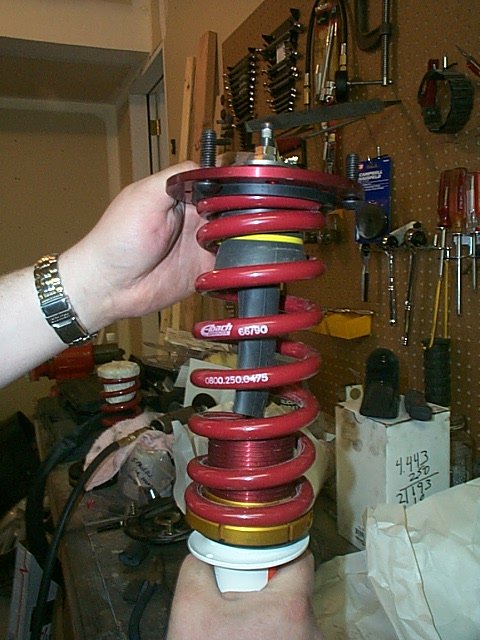

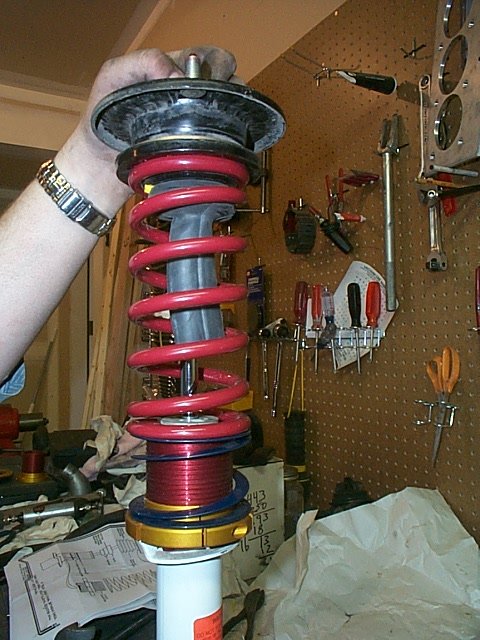

- Put on the upper perches
- Put on the black plastic spacer
- Put on the metal washer

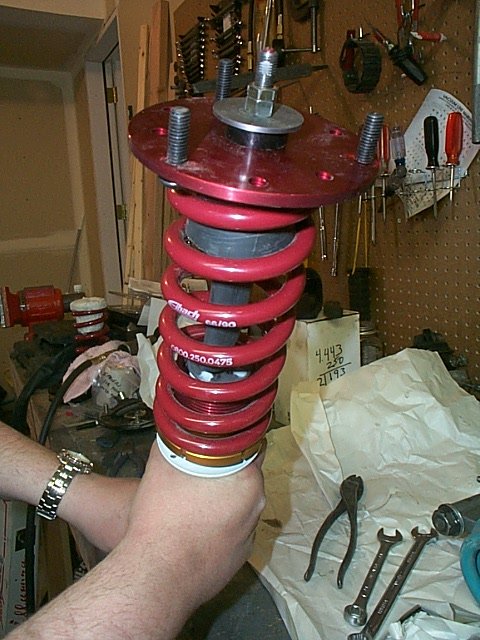

- Put on the two nuts on the strut

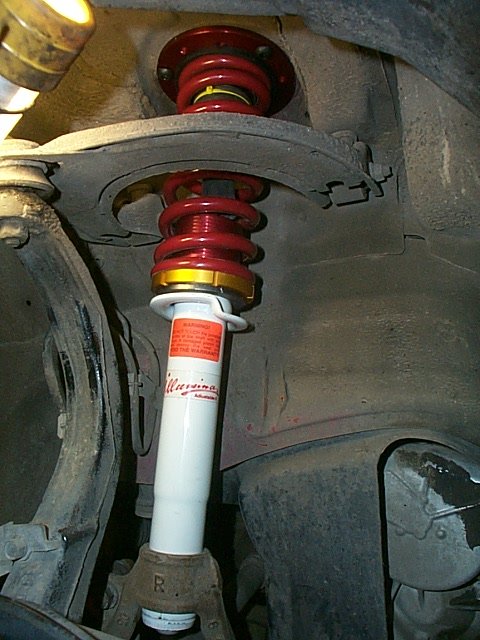

- Put on your car now!
